Measuring Conditions
Light Resistance
Measured at 10 Lux with standard light A (2854K color temperature) and 2hr illumination at 400-600 lux prior testing.
Dark Resistance
Measured 10 seconds after closed 10 lux light.
Gamma Charaoteristic
Between 10 lux and 100 lux and given by
R10、R100 Cell resistance at 10 lux and 100 lux.
The error of γ is ±0.1.
Pmax.
Max.Power dissipation at ambient measuring conditions:
Temperature=20±5℃ Humidity=65±10%
Vmax.
Max.Voltage in darkness that may be applied to the cell continuously.
Handling Instructions.
1) Solder hermetically sealed photodiodes within 5 sec, at less than 260℃. Solder others within 5 sec, at less than 230℃.
2) Do not excessively bend or twist the leads
3) Store photodiodes at normal temperature and humidity.
|
 |
| Part Number |
Picture |
MOQ
(PCS)
|
Dimension
(mm) |
Max DC Voltage Applied
(V) |
Max Power
Dissipation
25°C
(mW) |
Light R
10 Lux
(KΩ) |
Dark R
Min
(MΩ)
|
100
γ
10 |

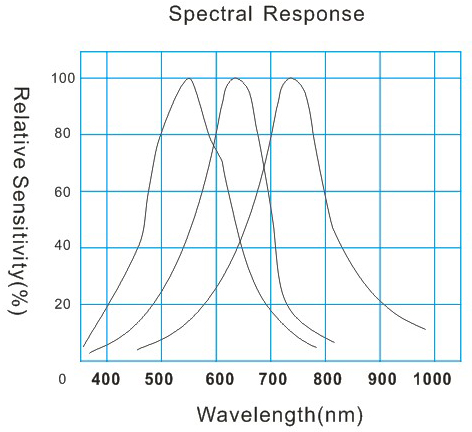

Spectral Peak
(nm) |
Response Time
(ms)
|
Rise
Time |
Decay
Time
|
|

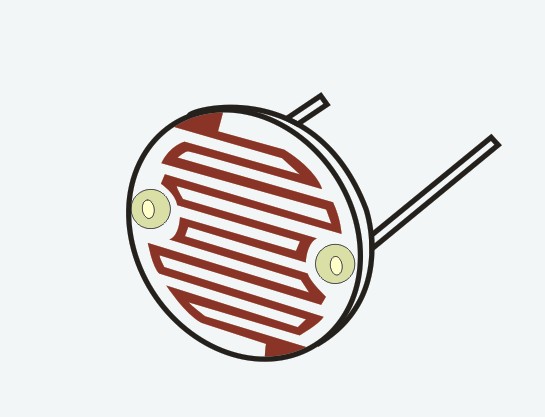

Hermetic Package |
|
GL5-2AC02  |
|
1,000 |
φ5 |
150 |
100 |
20 ~ 40 |
2.0 |
0.7±0.1 |
540 |
20 |
30 |
|
GL5-2AC03 |
|
1,000 |
φ5 |
150 |
100 |
40 ~ 100 |
2.0 |
0.8±0.1 |
540 |
20 |
30 |
| GL5-05AC04 |
|
1,000 |
φ5 |
150 |
100 |
8 ~ 20 |
0.5 |
0.6±0.1 |
540 |
20 |
30 |
|
MPY-5H69 |
|
1,000 |
φ5 |
150 |
100 |
50 ~ 100 |
20 |
0.9±0.1 |
540 |
20 |
30 |
|
MPY-5H69-1 |
|
1,000 |
φ5 |
150 |
100 |
50 ~ 80 |
20 |
0.9±0.1 |
540 |
20 |
30 |
|
MPY-5H69-2 |
|
1,000 |
φ5 |
150 |
100 |
30 ~ 50 |
20 |
0.8±0.1 |
540 |
20 |
30 |
| GL7-5AC02 |
|
1,000 |
φ7 |
200 |
120 |
20~40 |
5 |
0.7±0.1 |
540 |
20 |
30 |
| GL7-04AC05 |
|
1,000 |
φ7 |
120 |
150 |
- |
0.4 |
0.6±0.1 |
615 |
- |
- |
|
GL12-05AC01 |
|
1,000 |
φ12 |
250 |
200 |
5~ 15 |
0.5 |
0.65±0.1 |
540 |
20 |
30 |
|

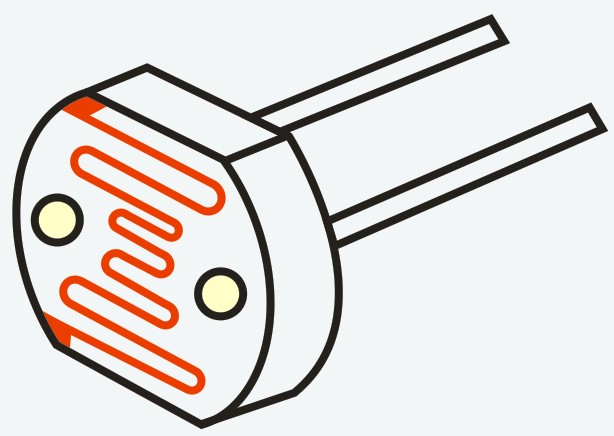

Ceramic Substate |
|
GL4-05AP02 |
.jpg)
|
1,000 |
φ4 |
150 |
50 |
10 ~ 20 |
0.5 |
0.7±0.1 |
540 |
30 |
30 |
|
GL4-20AP01 |
|
1,000 |
φ4 |
150 |
100 |
100 ~ 200 |
20 |
0.8±0.1 |
540 |
30 |
30 |
|
GL4-20AP04 |
|
1,000 |
φ4 |
150 |
50 |
20 ~ 100 |
20 |
0.7±0.1 |
540 |
30 |
30 |
|
GL5-05AP02 |
|
1,000 |
φ5 |
150 |
100 |
3 ~ 20 |
0.5 |
0.6±0.1 |
560 |
20 |
30 |
|
GL5-1AP07 |
|
1,000 |
φ5 |
150 |
100 |
18 ~ 50 |
1.0 |
0.7±0.1 |
560 |
20 |
30 |
|
GL5-5AP03 |
|
1,000 |
φ5 |
150 |
100 |
10 ~ 30 |
5.0 |
0.7±0.1 |
560 |
20 |
30 |
| GL5-5AP04 |
|
1,000 |
φ5 |
150 |
100 |
20~ 50 |
5.0 |
0.7±0.1 |
560 |
20 |
30 |
|
GL5-20AP01 |
|
1,000 |
φ5 |
150 |
100 |
20 ~ 80 |
20 |
0.8±0.1 |
540 |
20 |
30 |
|
GL5-20AP09 |
|
1,000 |
φ5 |
150 |
100 |
50 ~ 100 |
20 |
0.8±0.1 |
560 |
20 |
30 |
|
GL7-05AP03 |
|
1,000 |
φ7 |
150 |
150 |
3 ~ 20 |
0.5 |
0.7±0.1 |
560 |
30 |
30 |
|
GL7-2AP01 |
|
1,000 |
φ7 |
150 |
150 |
16 ~ 36 |
2.0 |
0.7±0.1 |
560 |
30 |
30 |
|
GL7-5AP02 |
|
1,000 |
φ7 |
150 |
150 |
20 ~ 50 |
5.0 |
0.8±0.1 |
560 |
30 |
30 |
|
GL12-03AP02 |
|
1,000 |
φ12 |
250 |
200 |
5 ~ 10 |
0.3 |
0.65±0.1 |
560 |
30 |
30 |
|
GL12-2AP01 |
|
1,000 |
φ12 |
250 |
200 |
10 ~ 20 |
2.0 |
0.7±0.1 |
560 |
30 |
30 |
| GL12-03AP03 |
|
1,000 |
φ12 |
250 |
200 |
3~ 8 |
0.3 |
0.65±0.1 |
560 |
30 |
30 |
|
GL20-1AP02 |
|
1,000 |
φ20 |
500 |
500 |
10 ~ 20 |
1.0 |
0.6±0.1 |
560 |
30 |
30 |
|
GL20-2AP01 |
|
1,000 |
φ20 |
500 |
500 |
20 ~ 50 |
2.0 |
0.7±0.1 |
560 |
30 |
30 |
|
Double Ceramic Substate |
|
GL5-D01 |
|
1,000 |
φ5 |
100 |
50 |
8 ~ 20 |
0.3 |
0.6±0.1 |
550 |
30 |
30 |
|
GL5-D02 |
|
1,000 |
φ5 |
100 |
50 |
20 ~ 50 |
2.0 |
0.65±0.1 |
550 |
30 |
30 |
|
GL5-D03 |
|
1,000 |
φ5 |
100 |
50 |
50 ~ 150 |
5.0 |
0.7±0.1 |
550 |
30 |
30 |
|
SMD |
|
104L678 |
 |
1,000
|
1206
|
100 |
70 |
50 ~ 200 |
5.0 |
0.7±0.1 |
560 |
20 |
30 |
|
