Pressure Sensor

Employs the most up-to-date state of art MEMS technology. Stepping size (1mmΧ1mm).The innovative design can be driven to higher pressures with good linearity   performance, or further amplified   for lower pressure sensitivity. Packaged with high density especially for avionic use material, suitable for high temperature, high durability environment. For use in gas, water, oil, acid and alkaline sensing.


Features:

  • ●High accuracy,+/-0.2% FS
  • ●High reliability
  • ●Withstand overpressure
  • ●Wide operating temperature range



Applications:

●Automobiles: TPMS, tire pressure, diagnostic instrument, air pump, steam and suspension  control, absolute pressure sensor
●Industry:      air pressure control, leakage measuring  in cable, hand carry pressure sensor,  pressure open/shut control
●Consumers:  hand held tire pressure meter, height and pressure measuring meters
●Medical:          patient monitoring and diagnostic equipment, blood pressure meter
●R&D:               Absolute  pressure  sensor  in  air  dynamics  and  common  absolute pressure  sensor


Operating Temprature (℃) -40 ~ 125

Part Number


MOQ

(PCS)

Operating

Voltage

(V)

Drive

Current

(mA)

Resistance

Temprature

 % /100

Pressure Range VS Output Voltage (±50%)

Precision

±%

(FS )

@0~150

KPa

(mV)

@151~700

KPa

(mV)

@701~1700

KPa

(mV)

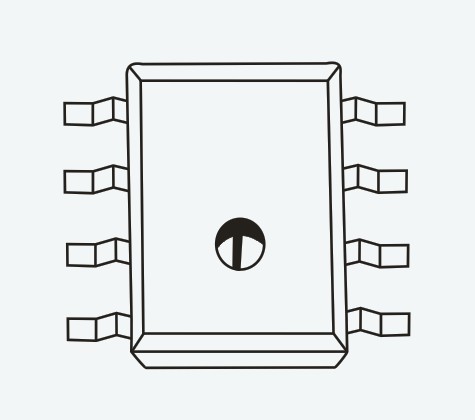

GM-SOP8A



3,000

5

1

18~33

100

120

150

/

GM-PS003

3,000

5

1

24~33

80

100

120

/

GM-PS002

3,000

5

1

24~33

80

100

120

0.2

GM-PS001

3,000

5

1

24~33

80

100

120

0.2

GM-PS010G

3,000

3

1

18~32

@50KPa

80

/

/

0.2
