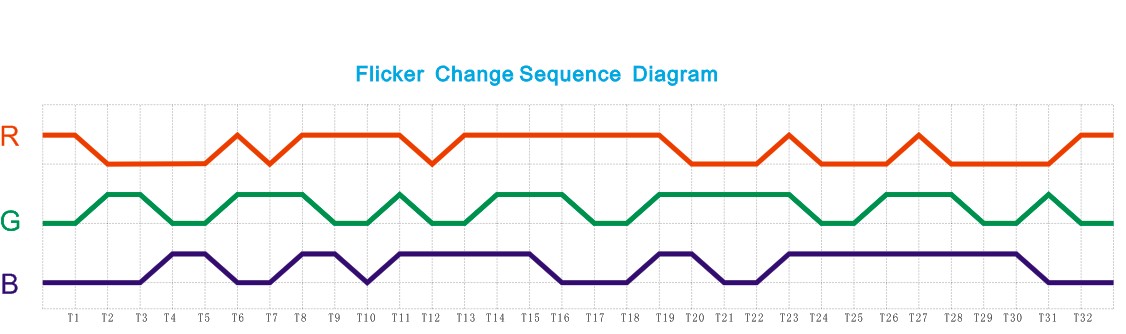

![](images/QQ截图20121221175131.jpg)
|
Features:
●Unique design, wide light angle
● Creative design on heat dissipation
●Strict quality control on material, Attenuation ratio on R/G/B consistent
●Energy saving, eco-friendly and cost-effective
|
Application:
●Billboard, sign, and stage lighting
●Mobile phone, digital device
●Remote control car and airplane etc…
|
Part number
|
|
MOQ
(PCS)
|
Operating
Voltage
(V)
|
Reverse
Current
1.2V
(mA)
|
Rated
Power
(mW)
|
Cycle
(s)
|
Maximum
Voltage
(V)
|
Angle Δθ(°)
|
Forward Voltage
(V)
|
R
|
G
|
B
|
R
|
G
|
B
|

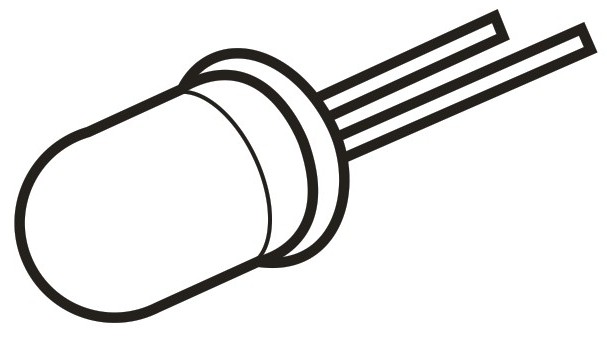

DIP-RGB Flash |
GC-RGB7-03![](images/PDF图标.jpg) |
|
1,000
|
4.5 |
<150 |
120 |
32 |
5.5 |
17 |
17 |
17 |
2.8 |
3.2 |
3.2 |
GY-RGB7-09![](images/PDF图标.jpg) |
|
1,000
|
4.5 |
<150 |
135 |
32 |
5.5 |
120 |
120 |
120 |
2 |
3.5 |
3.5 |
GY-RGB7-10![](images/PDF图标.jpg) |
|
1,000
|
4.5 |
<150 |
135 |
32 |
5.5 |
- |
- |
- |
2 |
3.5 |
3.5 |
GY-RGB7-11![](images/PDF图标.jpg) |
|
1,000
|
4.5 |
<150 |
135 |
32 |
5.5 |
- |
- |
- |
2 |
3.5 |
3.5 |
GY-RGB7-12![](images/PDF图标.jpg) |
|
1,000
|
4.5 |
<150 |
135 |
32 |
5.5 |
- |
- |
- |
2 |
3.5 |
3.5 |
GY-RGB7-13![](images/PDF图标.jpg) |
![](images/RGB6.jpg) |
1,000
|
4.5 |
<150 |
135 |
32 |
5.5 |
- |
- |
- |
2 |
3.5 |
3.5 |
SMD-LED Full Color |
Part number
|
|
MOQ
(PCS) |
Dimension
(mmxmmxmm)
|
Color
|
Wavelength
(nm)
|
Luminance
Intensity
(mcd)
|
Voltage
(v)
|
Test
current
(mA)
|
Angle of Observation
(deg)
|
Shell
Color
|
RS-B1![](images/PDF图标.jpg) |
|
1,000
|
2.1x2.1x1.1 |
R |
620-630 |
80 |
1.9-2.3 |
15 |
110 |
Frosted |
G |
520-535 |
300 |
3.0-3.4 |
10 |
B |
465-475 |
48 |
3.0-3.4 |
10 |
RS-B2![](images/PDF图标.jpg) |
![](images/UVLED2.jpg) |
1,000
|
2.7x2.4x1.1 |
R |
620-630 |
75 |
1.9-2.3 |
15 |
110 |
Frosted |
G |
520-535 |
270 |
3.0-3.4 |
10 |
B |
465-475 |
55 |
3.0-3.4 |
10 |
RS-B3![](images/PDF图标.jpg) |
![](images/UVLED2.jpg) |
1,000
|
2.7x2.4x1.1 |
R |
620-630 |
150 |
1.9-2.3 |
15 |
110 |
Frosted |
G |
520-535 |
500 |
3.0-3.4 |
10 |
B |
465-475 |
120 |
3.0-3.4 |
10 |
RS-B4![](images/PDF图标.jpg) |
![](images/UVLED3.jpg) |
1,000
|
2.7x2.4x1.1 |
R |
620-630 |
75 |
1.9-2.3 |
15 |
110 |
Frosted |
G |
520-535 |
270 |
3.0-3.4 |
10 |
B |
465-475 |
55 |
3.0-3.4 |
10 |
RS-B5![](images/PDF图标.jpg) |
![](images/UVLED3.jpg) |
1,000
|
2.7x2.4x1.1 |
R |
620-630 |
150 |
1.9-2.3 |
15 |
110 |
Frosted |
G |
520-535 |
500 |
3.0-3.4 |
10 |
B |
465-475 |
120 |
3.0-3.4 |
10 |
RS-B6![](images/PDF图标.jpg) |
![](images/UVLED4.jpg) |
1,000
|
3.5x3.2x1.85 |
R |
620-630 |
150 |
1.9-2.3 |
15 |
110 |
Frosted |
G |
520-535 |
450 |
3.0-3.4 |
10 |
B |
465-475 |
95 |
3.0-3.4 |
10 |
RS-B7![](images/PDF图标.jpg) |
![](images/UVLED5.jpg) |
1,000
|
3.5x2.8x1.85
|
R |
620-630 |
185 |
1.9-2.3 |
15 |
120 |
Lucency |
G |
520-535 |
500 |
3.0-3.4 |
10 |
B |
465-475 |
95 |
3.0-3.4 |
10 |
RS-B8![](images/PDF图标.jpg) |
![](images/UVLED6.jpg) |
1,000
|
3.5x2.8x1.85 |
R |
620-630 |
250 |
1.9-2.3 |
20 |
120 |
Frosted |
G |
520-535 |
920 |
3.0-3.4 |
20 |
B |
465-475 |
250 |
3.0-3.4 |
20 |
RS-B9![](images/PDF图标.jpg) |
![](images/UVLED6.jpg) |
1,000
|
3.5x2.8x1.85 |
R |
620-630 |
540 |
1.9-2.3 |
20 |
110 |
Frosted |
G |
520-535 |
1000 |
3.0-3.4 |
20 |
B |
465-475 |
270 |
3.0-3.4 |
20 |
RS-B10![](images/PDF图标.jpg) |
![](images/UVLED6.jpg) |
1,000
|
3.5x2.8x1.85 |
R |
620-630 |
60 |
1.9-2.3 |
15 |
110 |
Frosted |
G |
520-535 |
200 |
3.0-3.4 |
10 |
B |
465-475 |
40 |
3.0-3.4 |
10 |
RS-B11![](images/PDF图标.jpg) |
|
1,000
|
5.0x5.0x2.5 |
R |
620-630 |
550 |
1.9-2.3 |
20 |
120 |
Lucency |
G |
520-535 |
900 |
3.0-3.4 |
20 |
B |
465-475 |
240 |
3.0-3.4 |
20 |
RS-B12![](images/PDF图标.jpg) |
![](images/UVLED7.jpg) |
1,000
|
5.0x5.0x2.5 |
R |
620-630 |
655 |
1.9-2.3 |
20 |
120 |
Lucency |
G |
520-535 |
1370 |
3.0-3.4 |
20 |
B |
465-475 |
375 |
3.0-3.4 |
20 |
RS-B13![](images/PDF图标.jpg) |
![](images/UVLED7.jpg) |
1,000
|
5.0x5.0x2.5 |
R |
620-630 |
580 |
1.9-2.3 |
20 |
120 |
Frosted |
G |
520-535 |
1380 |
3.0-3.4 |
20 |
B |
465-475 |
310 |
3.0-3.4 |
20 |
SMD-UV-LED |
Part Number
|
|
MOQ
(PCS)
|
Dimension
(mmxmmxmm)
|
Forward
Current
(mA)
|
Forward Voltage
(V)
|
Counter
Current
(uA)
|
Output Power
(mW)
|
Reverse
Voltage
(V)
|
Power
Dissipation
(mA)
|
Wavelength
(nm)
|
UV365-B![](images/PDF图标.jpg) |
![](images/SMDUV1.jpg) |
1,000
|
8.8x14.5x5.6 |
350 |
3.8-4.2 |
≤10 |
15-25 |
5 |
1000 |
365-370 |
UV365-T![](images/PDF图标.jpg) |
![](images/SMDUV1.jpg) |
1,000
|
8.8x14.5x5.6 |
350 |
3.5-4.5 |
≤10 |
50-60 |
5 |
1000 |
375-380 |
UV375-B![](images/PDF图标.jpg) |
![](images/SMDUV2.jpg) |
1,000
|
8.8x14.5x5.6 |
350 |
3.6-3.8 |
≤10 |
60-70 |
5 |
1000 |
375-385 |
UV375-T![](images/PDF图标.jpg) |
![](images/SMDUV3.jpg) |
1,000
|
8.8x14.5x5.6 |
350 |
3.6-4.4 |
≤10 |
40-60 |
5 |
1000 |
375-385 |
UV395-S![](images/PDF图标.jpg) |
![](images/SMDUV2.jpg) |
1,000
|
8.8x14.5x5.6 |
350 |
3.2-3.8 |
≤50 |
250-300 |
5 |
1000 |
395-405 |
UV395-MD![](images/PDF图标.jpg) |
![](images/SMDUV2.jpg) |
1,000
|
8.8x14.5x5.6 |
350 |
3.2-3.8 |
≤50 |
250-300 |
5 |
1000 |
395-405 |
|
